Cirrus SR20 Wiring Diagram Manual Download


These are not updated Manuals – For Reference ONLY!!!

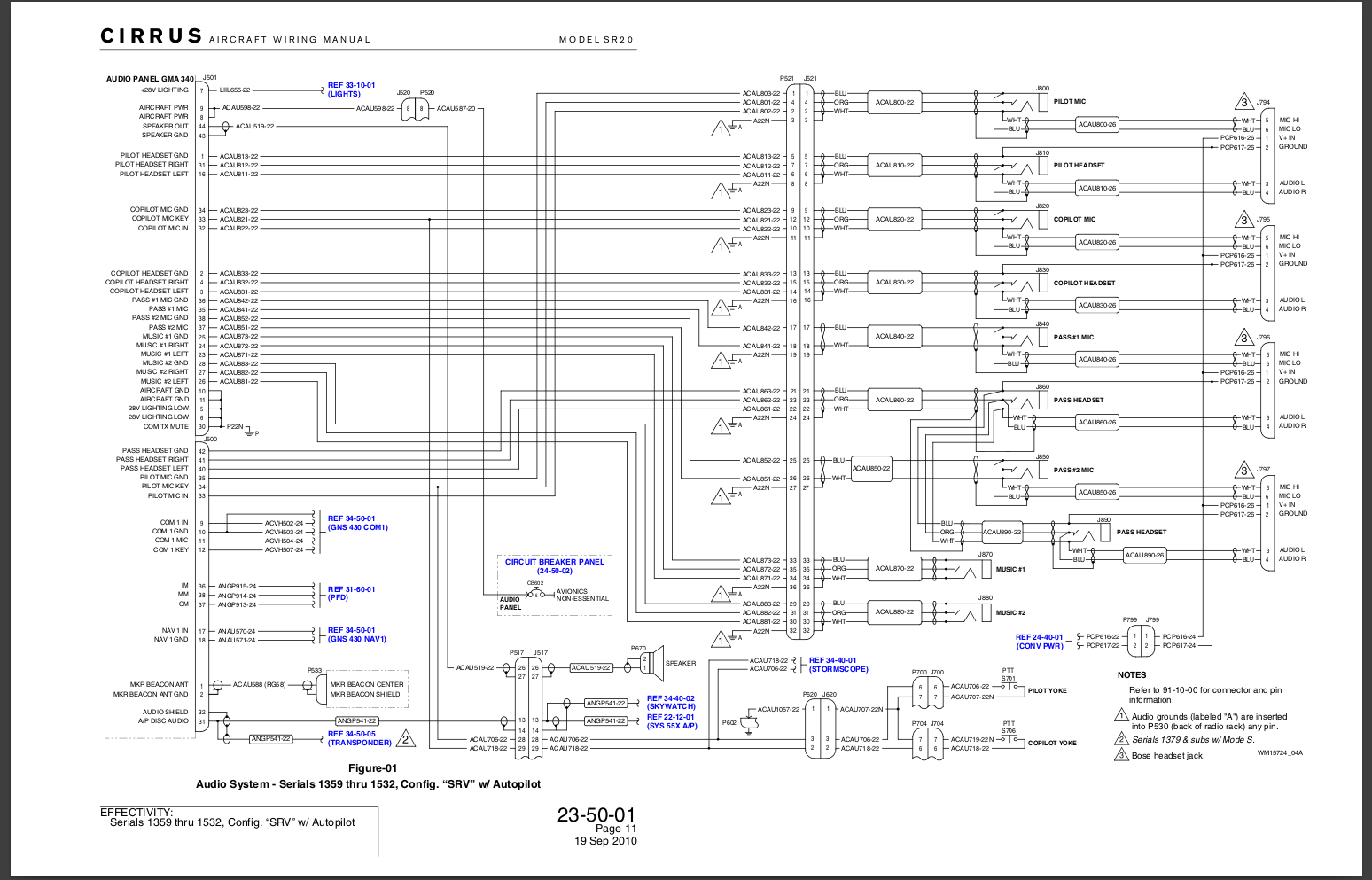

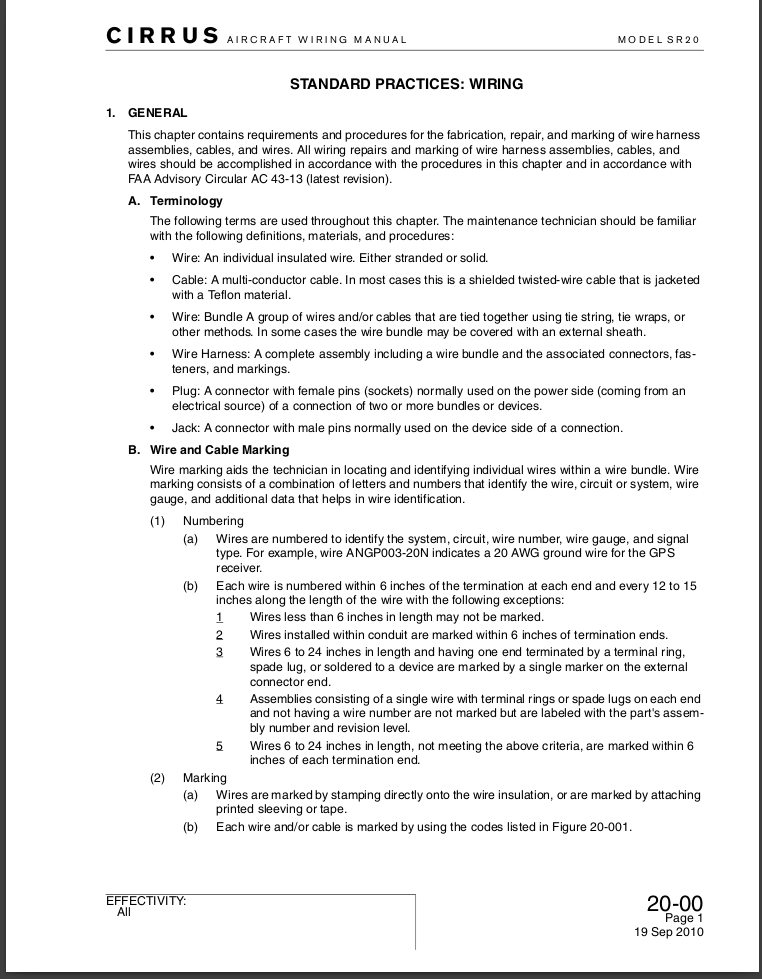

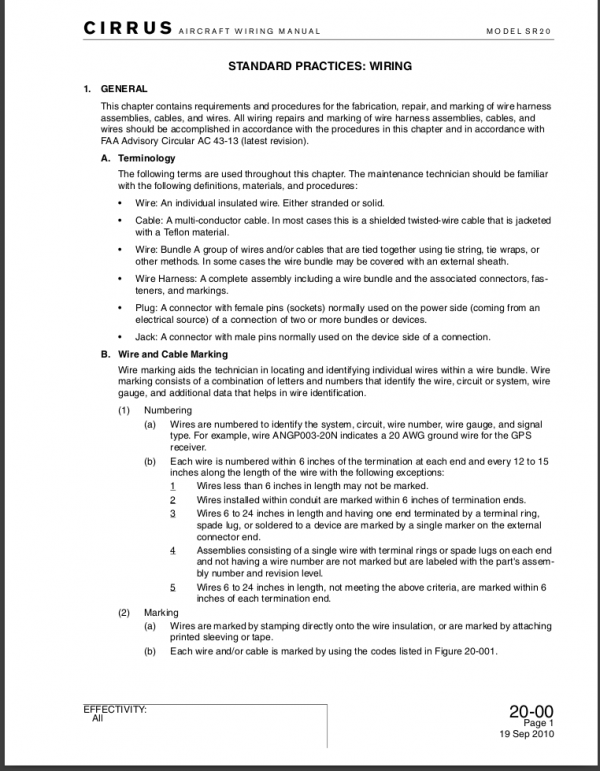

Cirrus SR20 WD Wiring Diagram Manual Download Only

  • SR20

Issued: 2010

File size: 21.5 MB

PDF Format

Check out our PARTS Database

SKU: SR20_WD Categories: ,


The Cirrus SR20 is an American piston-engine, four- or five-seat composite monoplane built by Cirrus Aircraft of Duluth, Minnesota since 1999.

The SR20 was the first production general aviation (GA) aircraft equipped with a parachute to lower the airplane safely to the ground after a loss of control, structural failure or mid-air collision. It was also the first manufactured light aircraft with all-composite construction and flat-panel avionics.
The SR20 was developed into the Cirrus SR22, which was introduced in 2001 and is the most produced GA aircraft of the 21st century. SR20 Wiring Diagram Manual Download
